MSLED 20-S

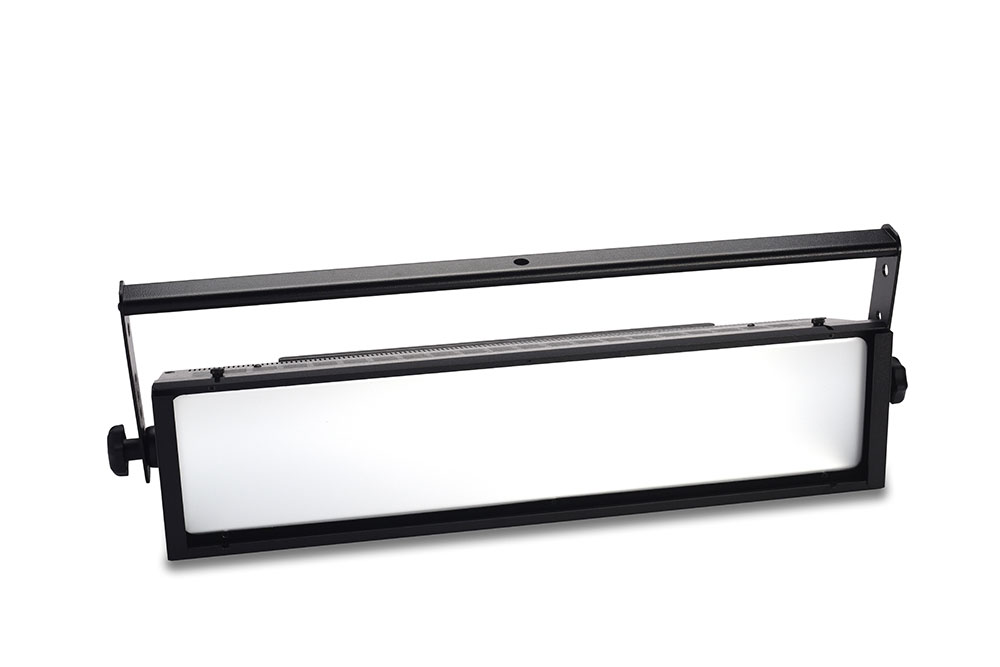

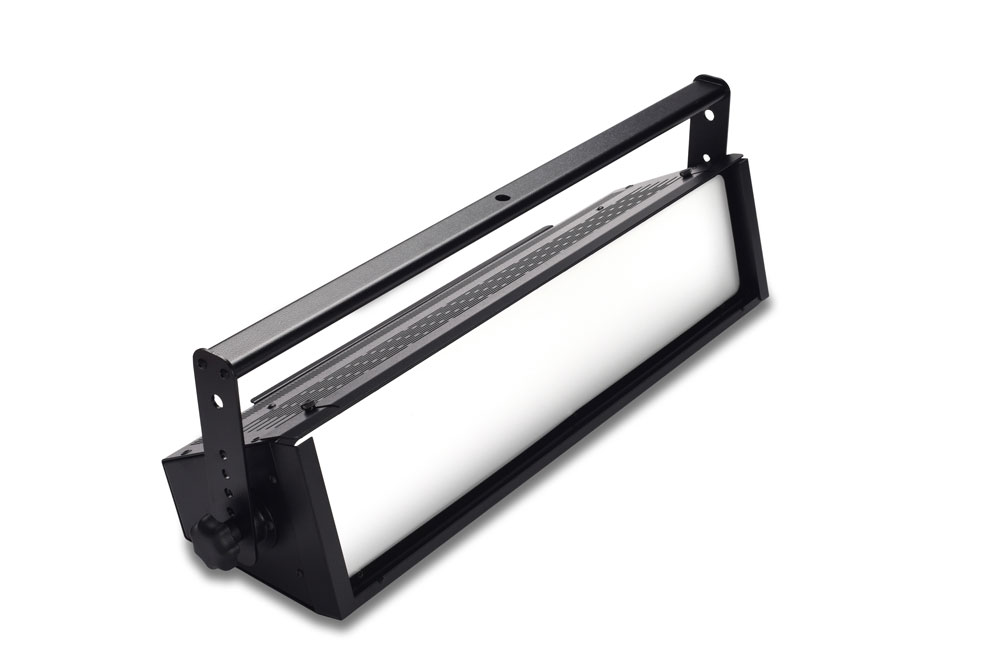

The Superior MSLED 20-S

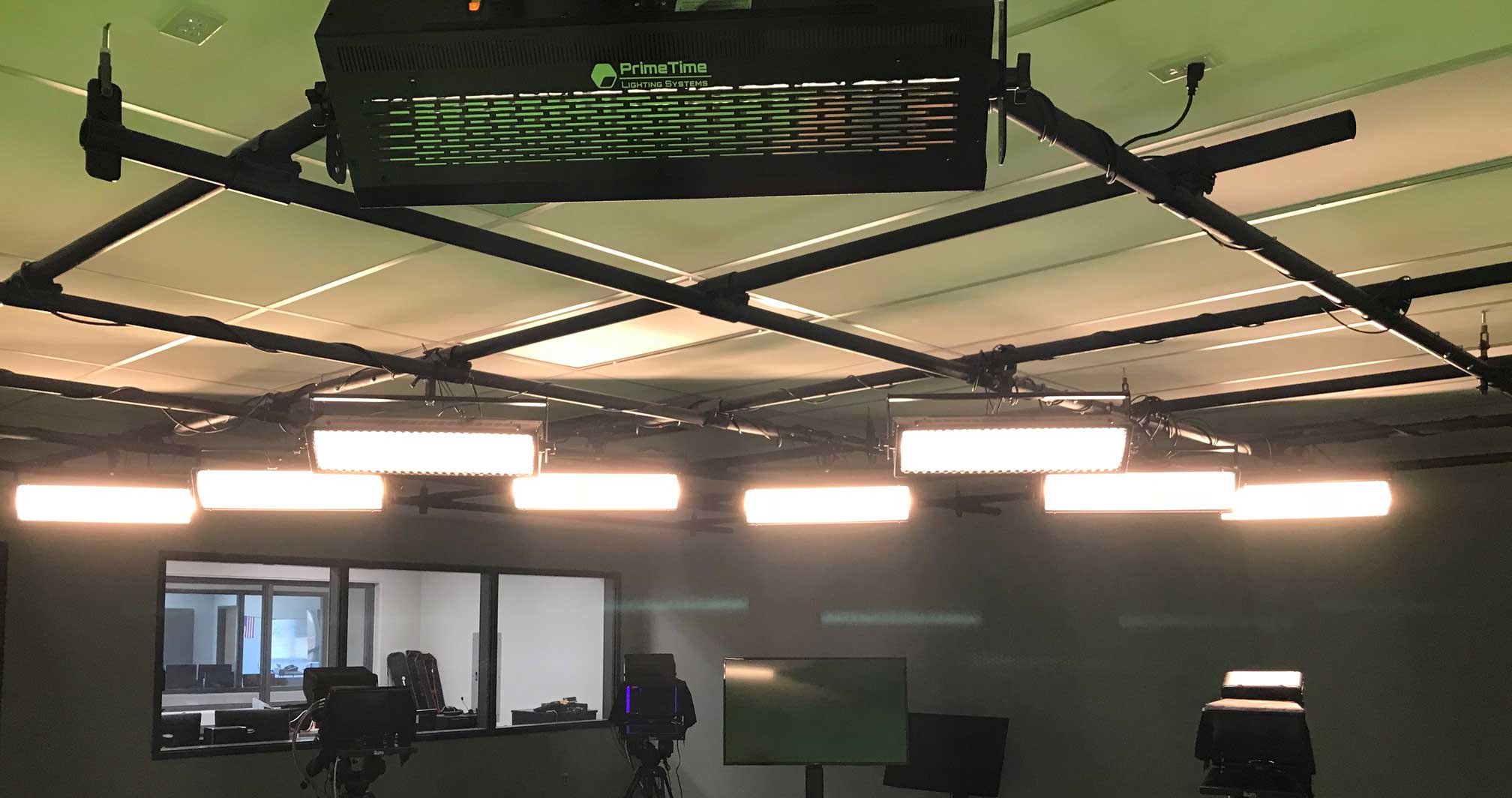

The MSLED series of LED luminaires are designed for standard broadcast studio grids and also work great in low-profile or low-ceiling applications to key light, fill, side or backlight talent on chroma key or interview sets. We’ve upgraded the MSLED multiple times – improving on an already superior LED fixture. The MSLED 20 XB2 has been replaced by the MSLED 20-S which is more powerful with a smooth and soft quality light. The MSLED 20-S has an increased Lambertian front lens surface with a soft shadow wraparound and outperforms panel lights. The MSLED 20-S is perfect for television broadcast studios, film production, broadcast worship services, distance learning or video conference facilities. Manufactured in the USA with PrimeTime’s innovative design, energy-saving LED technology for cool and comfortable talent illumination.

Features of the MSLED 20-S Broadcast Studio LED Light

  • New optics result in an even Lambertian surface across the front lens
  • MSLED 20 XB2Uncompromised engineering standards – NO FAN, no noise, no vibration
  • Bright, single shadow rendering with a consistent soft light output for optimal talent lighting. Enables talent to stay cool and composed
  • FIVE-YEAR Warranty
  • Energy-efficient – saves power by only drawing 60 Watts
  • Highest quality Light Emitting Diodes (LED) – 50,000 hour rated lifetime
  • High Color Rendering Index of 95+ (95+ CRI)
  • Amazing soft shadow for wraparound light quality
  • No Fan! Passive cooling, completely silent
  • Perfect for low ceiling applications
  • Built by hand in America with PrimeTime’s legacy of high performance, superior quality, and durability
  • Available in Tungsten or Daylight color temperature
  • Fanless cooling – all of our LED products stay cool and bright because of our innovative engineering
  • Long lasting LED saves on staff maintenance
  • Equipped with DMX and digital display interface

MSLED 20-S Accessories

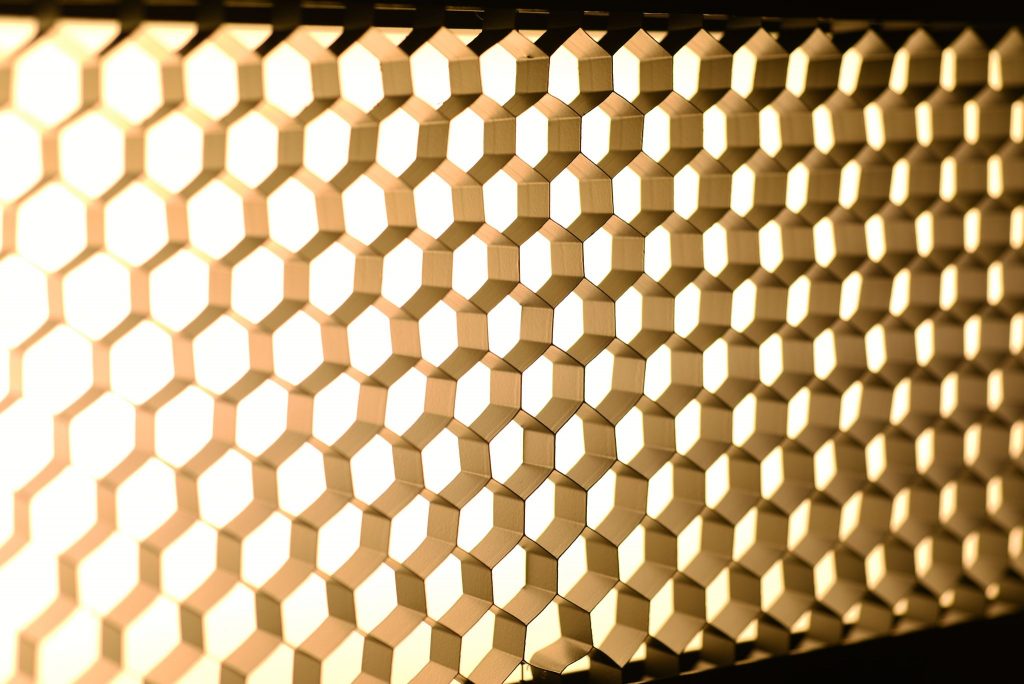

  • Wide and Medium Honeycomb

MSLED 20-S Specifications

  • DMX
  • Draws 90 Watts of power
  • Input 1 amp @115V
  • Accepts 5-pin XLR cables
  • All aluminum construction
  • Dimensions: 27″ wide, 6.5″ tall, 7.25″ deep. Weight 14 lbs.
  • Daylight Photometrics (5600Kelvin)
  • Tungsten Photometrics (3200Kelvin)
  • MSLED 20-S and XB2 Operating Manual

PrimeTime Lighting Systems

Full 5-Year Warranty
